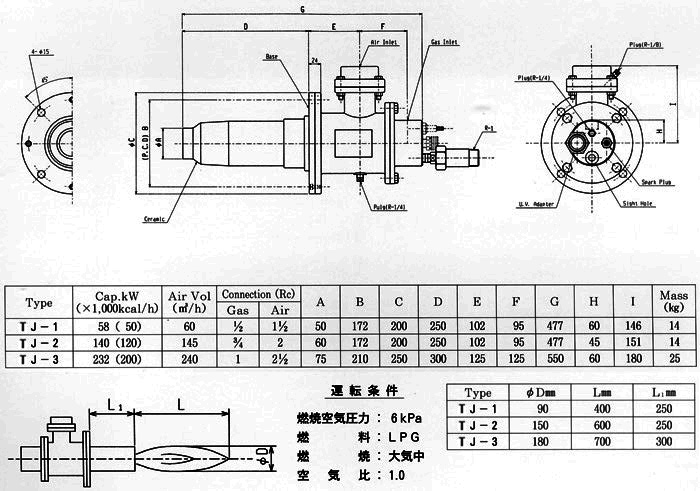

| High-speed gas burner which mixes fluid in the furnace and accordingly keeps the temperature distribution uniform there. |
|
|
|
|
|
|
|
|
 |
|
|
|
This burner can mix the furnace by the high-speed heating gas at 60-80m/sec. So, distributed heating is uniform.
The ratio of turndown is high, 10:1. Therefore this burner can be use for hot air.
|
|
|
|
|
|
|
|
|
 |
|
|
|
As luminous flame can be obtained in all ranges of turndown, this burner improved the heat efficiency of heat treatment furnaces heating furnaces and melting furnaces.
|
|
|
|
|
|
|
|
|
 |
|
|
| Perfact combustion on the burner tile surface allows proximate heating. Heat, emitted from the burner tile surface, has a high emissivity, so the heat is used for heating materials.
The burner itself generates and emits heat. It has the merits of both electric furnace and gas furnace.
|
|
|
|
|
|
|
|
|
 |
|
|
| The simple clamp mechanism makes maintenance of the burner nozzle or burner tile easy. |
|
|
|
|
|
|
|
|
 |
|
|

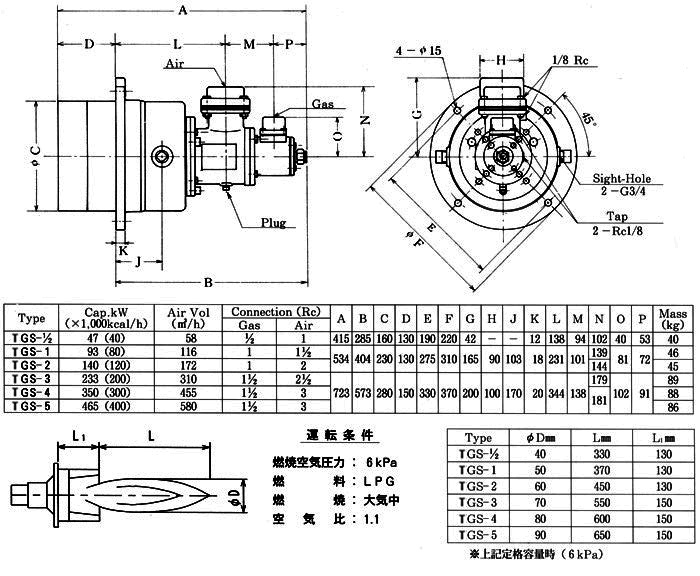

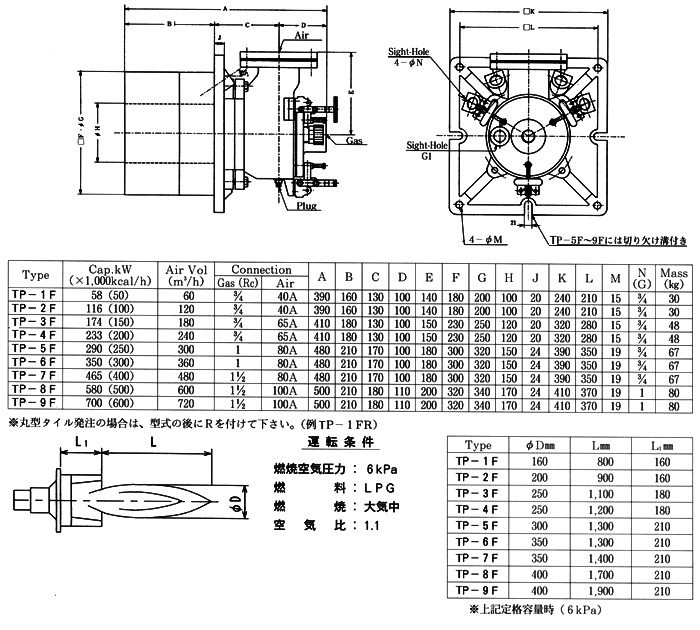

| Nozzle-mixing type burner. Very stable combustion can be obtained even if with excess air. As high-speed combustion mixes fluids in the furnace, heating is uniform. Further, a high turndown ratio is so bigh that it is possible to regulate the control of temperature to the extent of low temperature.
|
|
|
|
|
|
|
|
|
 |
|
|

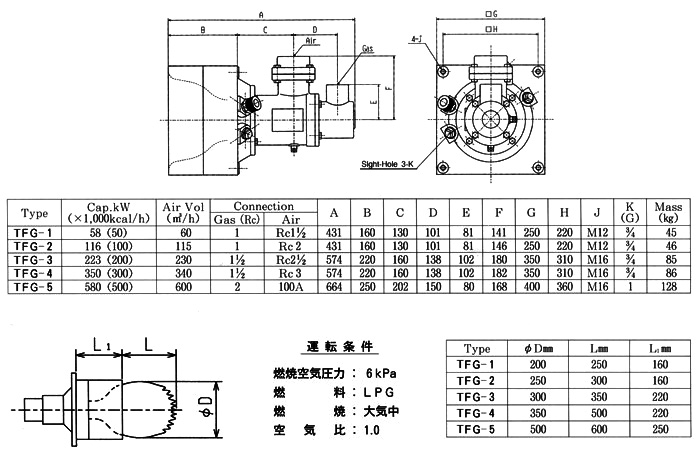

| This burner has a disk flame rotating in the burner tile, this is the most suitable for heating materials centrally by its radiation heat. |
|
|
|
|
|
|
|
|
 |
|
|

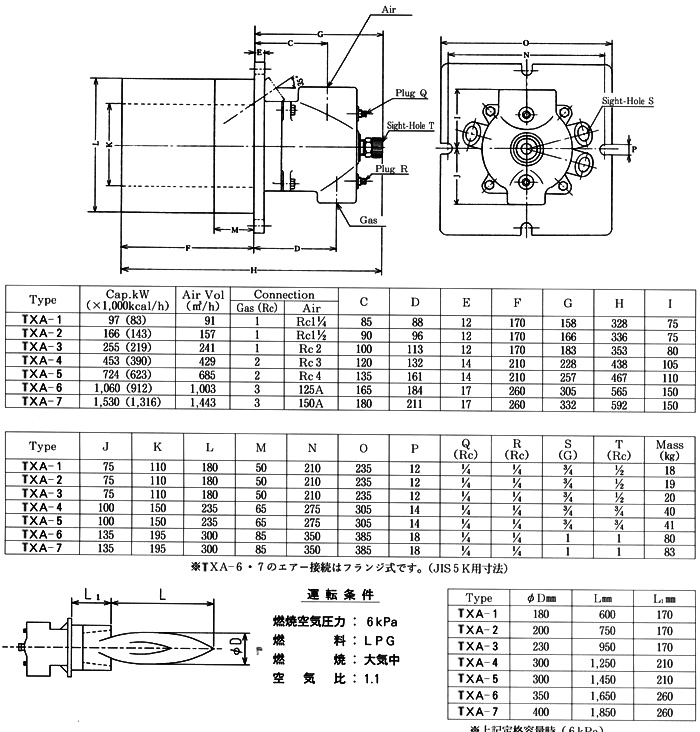

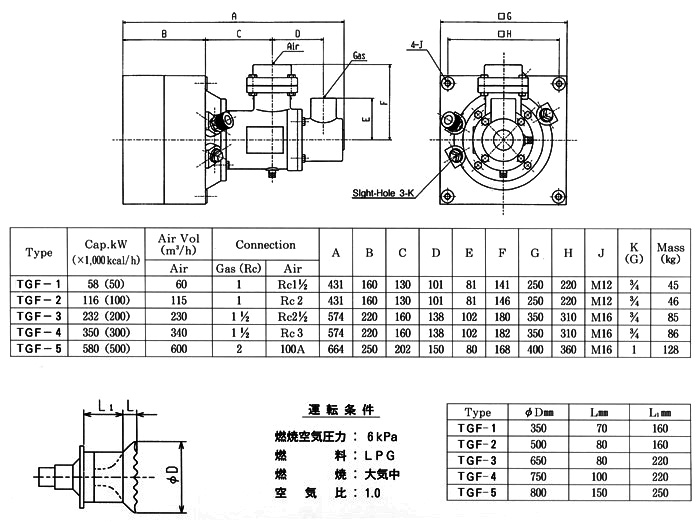

| Direct mounting type-fitting the burner tile to the furnacewall. The burner heats the tile and furnace wall circularly. Therefore the emitted heat warms up the materials. |
|
|
|
|
|
|
|
|
 |
|
|
|

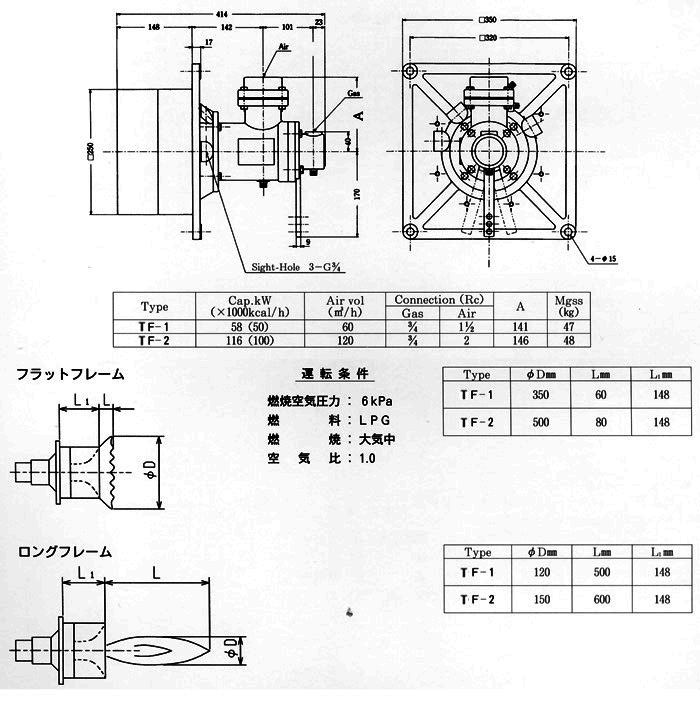

You can change the length of flame manually and automatically.
A simple operation of lever can convert two kinds of plain flame and straight flame. Suitable for heating fumace and melting fumace.
|
|
|
|
|
|
|
|
|
 |
|
|

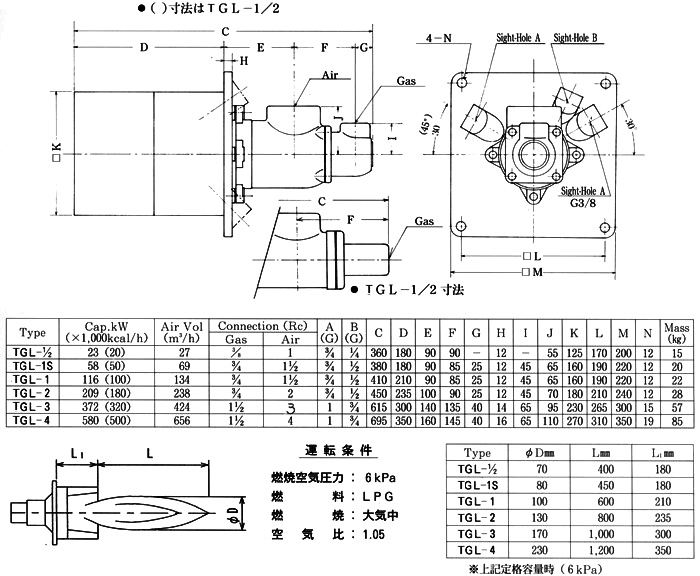

| The flame of this burner can be changed to a downward direction at a luminous long flame. The flame cone is attached, so this burner needs ni burner tile.
You can use this burner for crematiog furnaces, incinerators, melting furnaces and other ceramic furnaces.
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|

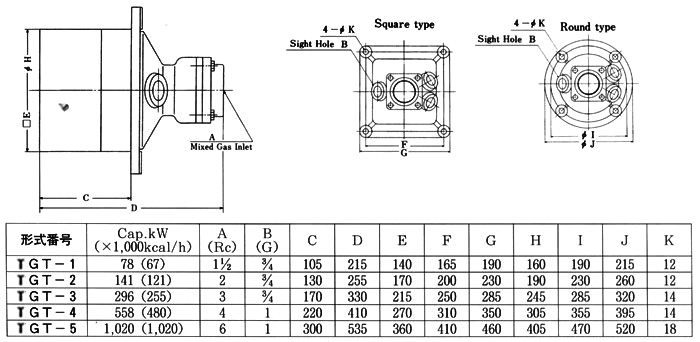

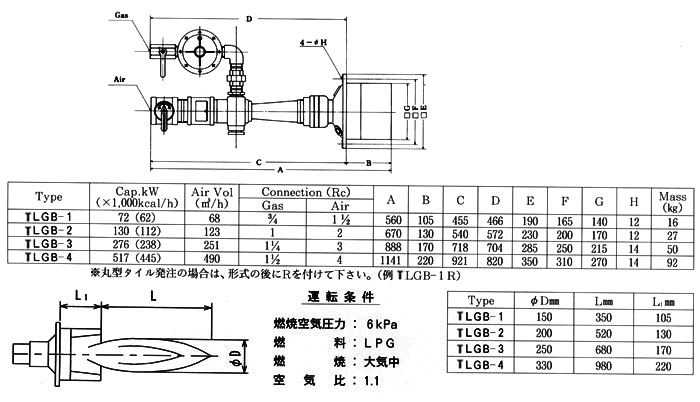

| This is a premixing type burner which can be used single or multiple units, connecred to the ventur mixer. The burner nozzle holds flamestable combustion and there is no danger of a backfire.
|
|
|
|
|
|
|
|
|
 |
|
|
|
This is direct-ignition gas burner of nozzle mixed type using a light, compact ceramic combustion sylinder.
This burner can be used for 300C hot air. This has widened the application of this burner to various heat treatment furnaces, heating furnaces, rtc.
|
|
|
|
|
|
|
|
|
 |
|
|

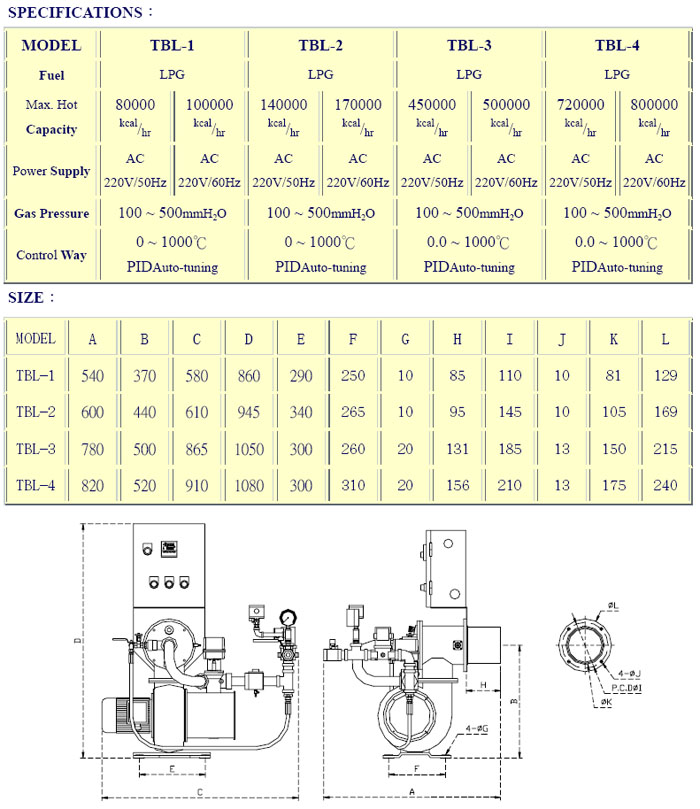

| This machine installs when is extremely simple, only must supply the family with to pack in a barrel LPG then to use, burning flame stabilization, size flame operation freely, burning scope 1:1 |
|
|
|
|
|
|
|
